COLD RESISTANT CONVEYOR BELT

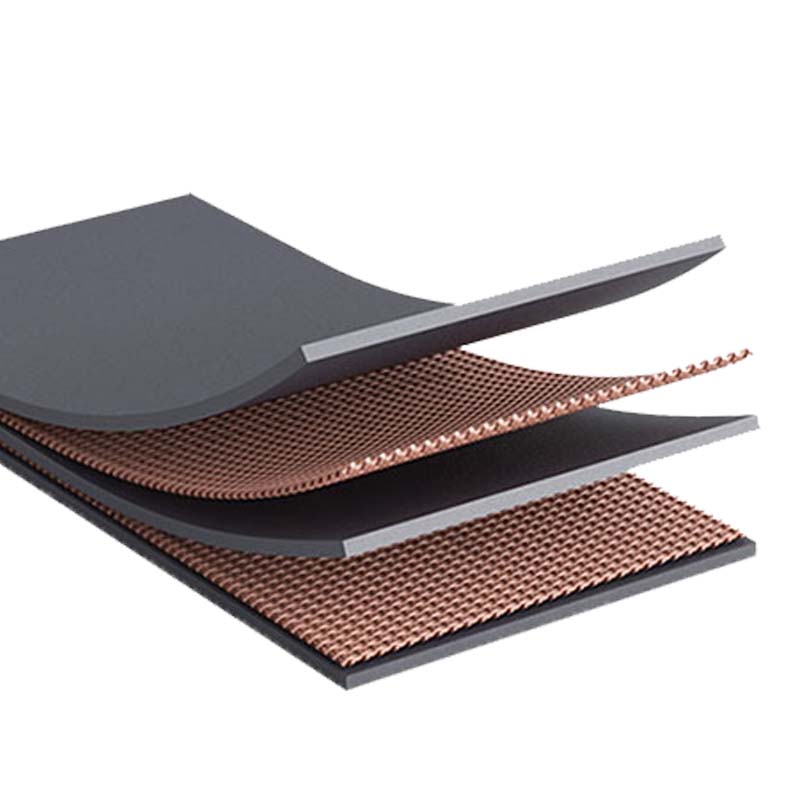

The cold resistant rubber conveyor belt is specifically designed for transporting bulk materials in low-temperature environments. It is constructed with multiple layers of high-strength synthetic fabric (such as polyester or nylon) and coated with specially formulated rubber that maintains flexibility and performance in extreme cold.

1.The cold resistant conveyor belt remains highly flexible and elastic even at sub-zero temperatures, ensuring excellent impact and tear resistance in harsh winter conditions.

2.It exhibits minimal permanent elongation under tension, providing stable performance and reducing the need for frequent tension adjustments. This helps lower equipment operating costs and is ideal for long-distance material handling in cold regions.

3.The belt possesses exceptional low-temperature resistance, preventing hardening and cracking in freezing environments. The bond between rubber layers remains strong, ensuring reliable operation and extended service life.

4.It offers good resistance to abrasion, acids, alkalis, and oils, making it suitable for a variety of industrial applications in cold climates.

5.The cold resistant conveyor belt features a compact design with fewer layers, a thin body, and lightweight properties, enhancing conveying efficiency while reducing power consumption.

6.The tensile strength of the cover rubber exceeds 15 MPa, with an elongation at break of over 400% and an abrasion loss of less than 150 mm³.

7.The adhesion between fabric layers is robust, with an average peel strength of ≥ 4.5 N/mm. The bond between the cover rubber and fabric layers exceeds 4 N/mm.

8.The overall longitudinal tear resistance and full-thickness reference force elongation comply with international standards, guaranteeing durability and safety in low-temperature applications.


Product details

Product Properties:

The core structure is available in two types: standard and reinforced.

The cover rubber combines cis-butadiene synthetic rubber and natural rubber, providing exceptional elasticity and cold resistance, enabling reliable operation in extreme temperatures as low as -40°C.

Applications:

Ideal for transporting various materials in:

1.Cold regions

2.Refrigerated warehouses

Product Variants:

1.Operating temperature range: -40°C to +50°C

2.Operating temperature range: -50°C to +50°C
